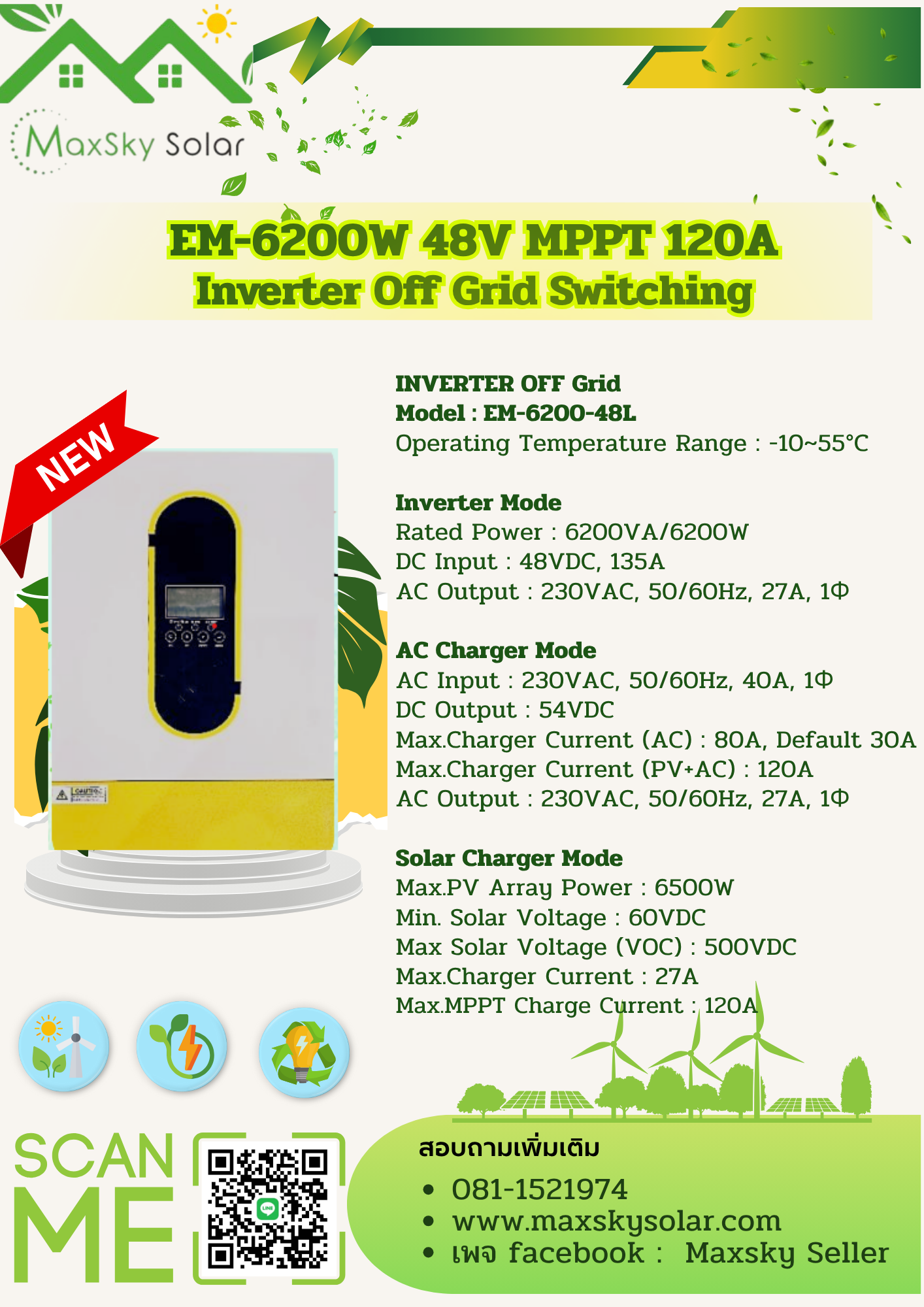

EM-6200W 48V MPPT 120A
คุณสมบัติสินค้า:
EM-6200W 48V MPPT 120A
หมวดหมู่ : Products ,
แบรนด์ : Maxsky Solar
Share
INVERTER MODE:
RATED POWER: 6200VA/6200W
DC INPUT: 48VDC,135A
AC OUTPUT: 230VAC,50/60Hz,27A
AC CHARGER MODE:
AC INPUT: 230VAC,50/60Hz,40A
DC OUTPUT: 54VDC
MAX.CHARGE CURRENT(AC):80A,DEFAULT 30A
MAX.CHARGE CURRENT(PV+AC):120A
AC OUTPUT: 230VAC< 50/60Hz, 47.8A
SOLAR CHARGER MODE:
MAX. PV ARRAY POWER: 6500W
MIN SOLAR VOLTAGE: 60VDC
MIN. SOLAR VOLTAGE (VOC): 500VDC
MAX. SOLAR CURRENT: 27A
MAX.MPPT CHARGE CURRENT: 120A
